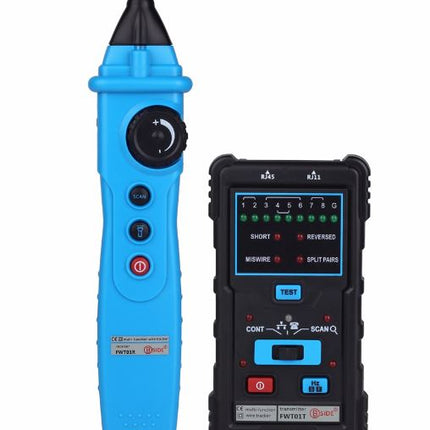

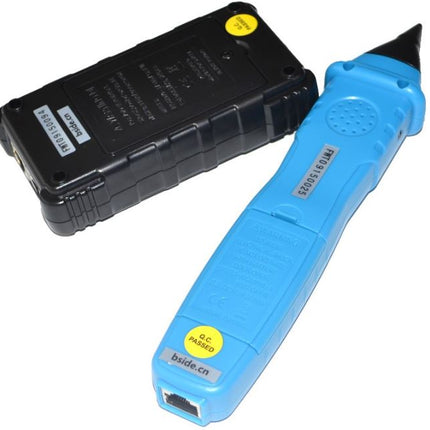

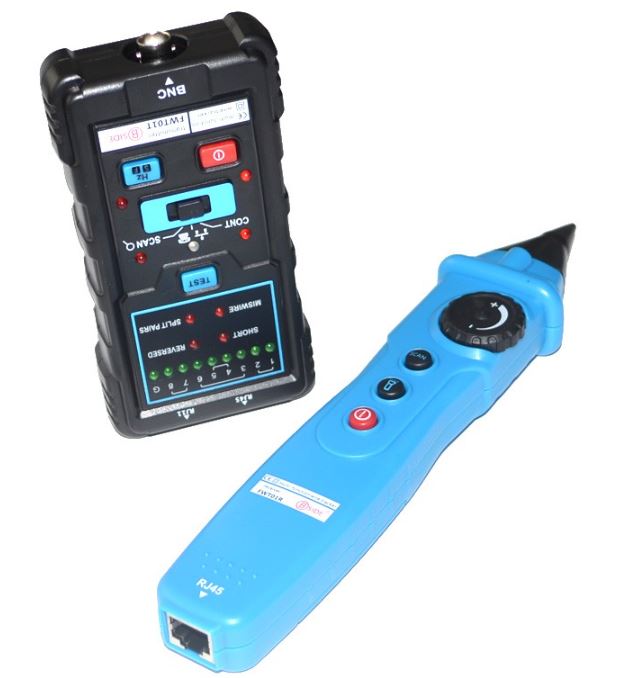

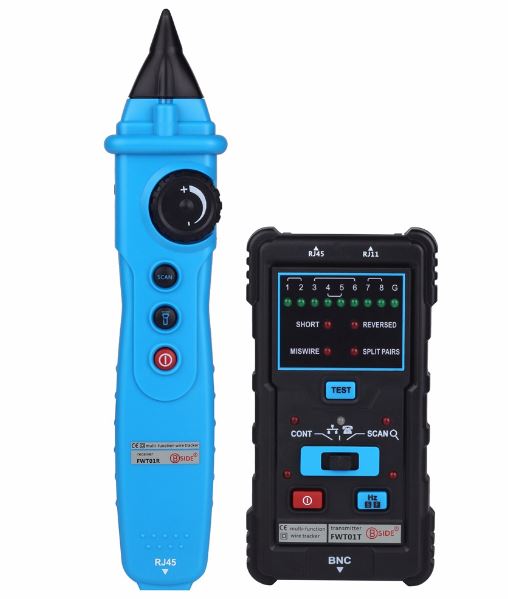

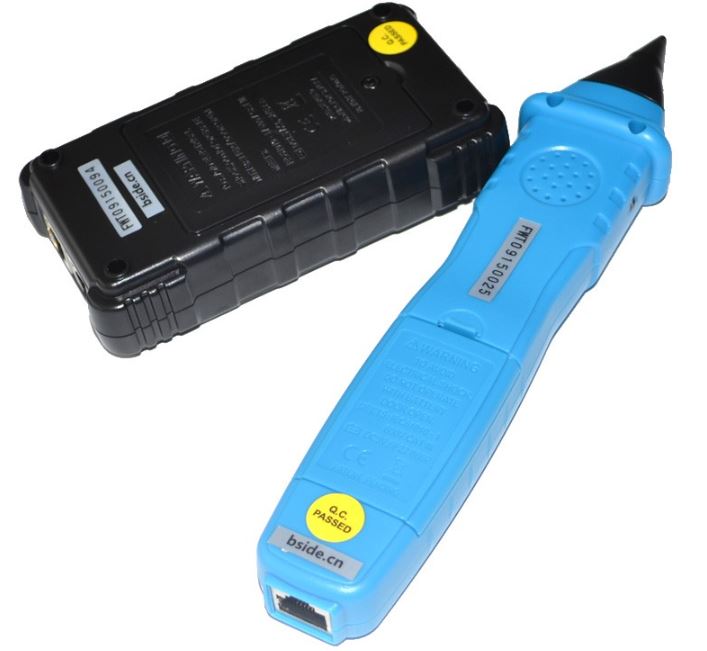

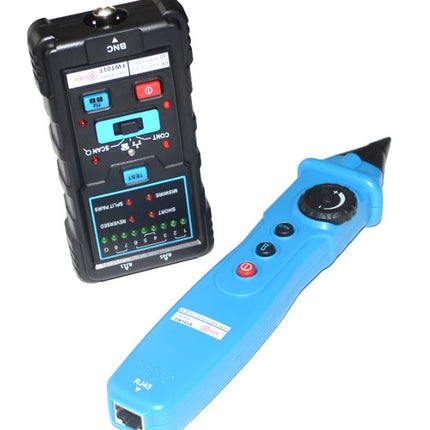

FWT01 Handheld Wire Tracker, Multifunction Network LAN Cable Tracker Detector For CAT6 CAT6A RJ45 Ethernet RJ11 and others

Description

This product is a multi-functional handheld cable line finder & testing tool. It has wide application with reinforced cable types and multiple functions, which is a necessary testing tool for telecommunication engineering, wiring engineering and network maintenance personnel.

Item Name:  Cable Detector
Model: FWT01
Size: 235*142*51mm
Weight: Approx 450g

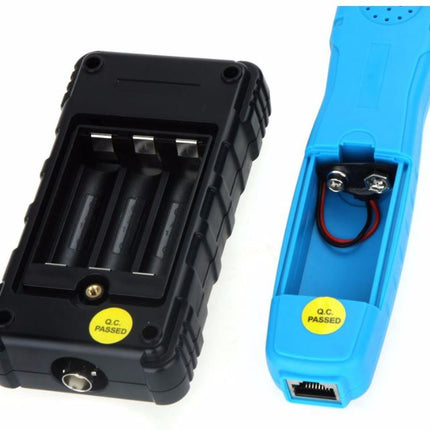

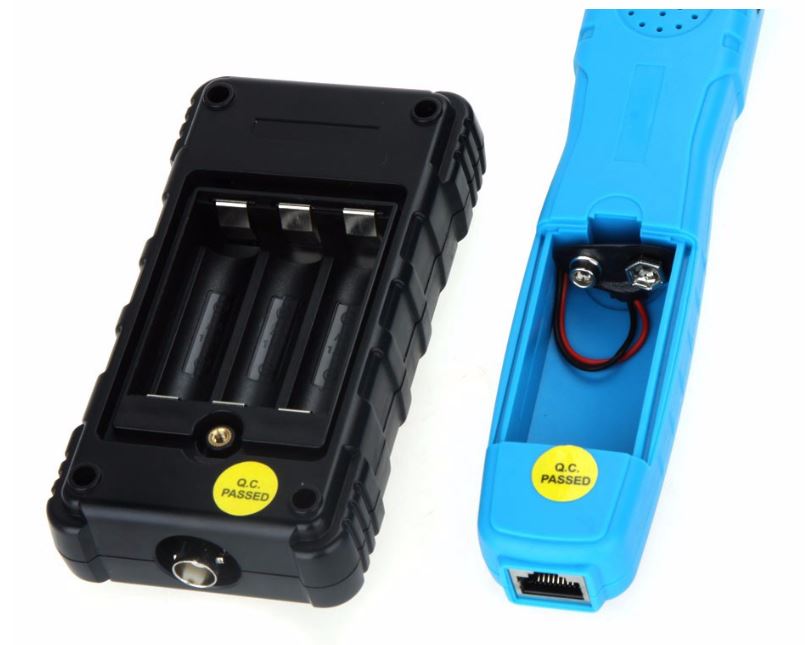

Power supply: receiver: 1 × 9V Alkaline battery Transmitter: 3 × 1.5AA Alkaline battery
(Batteries are NOT included!!!)

This set of tools are available for installation, and inspection of cable line maintenance, and for telephone lines, various state can determine the telephone line in the work, more convenient for telephone line installation, debugging and maintenance.

Function:
1. Judging whether the continuous cable line.
2. Tracking cable line, and the discrimination of the circuit
3. breaker points.
4. Receiving the cable lines (telephone line) of the audio signal.
5. The telephone line to judge the work in the state (idle, ringing, off hook).
6. The transmit audio signal to the target cable line.

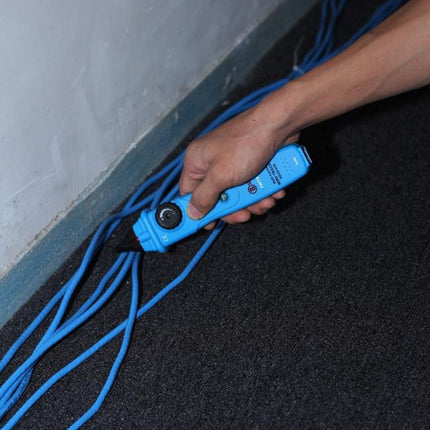

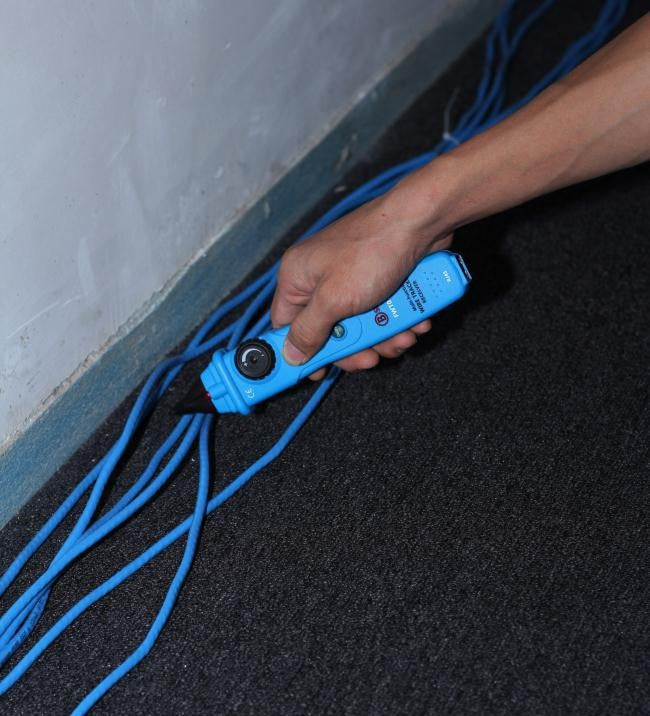

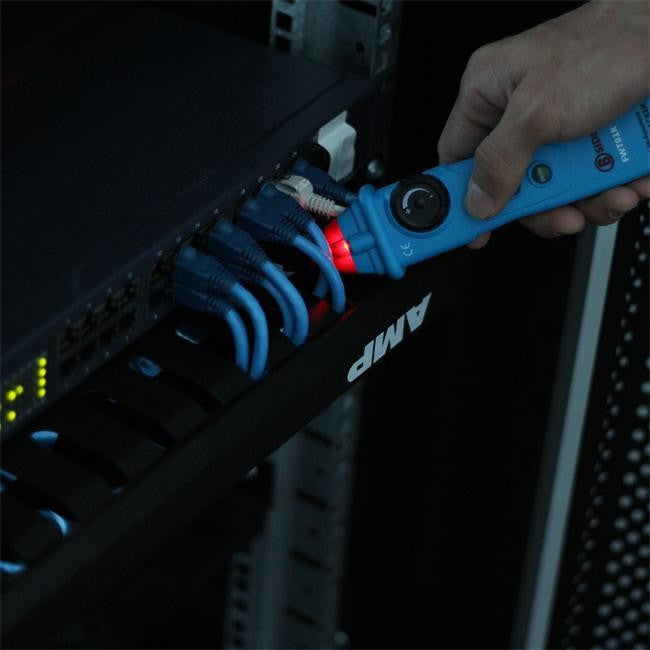

Tracking Cable Line:
With the realization of the cable using the audio function and tracking receiver

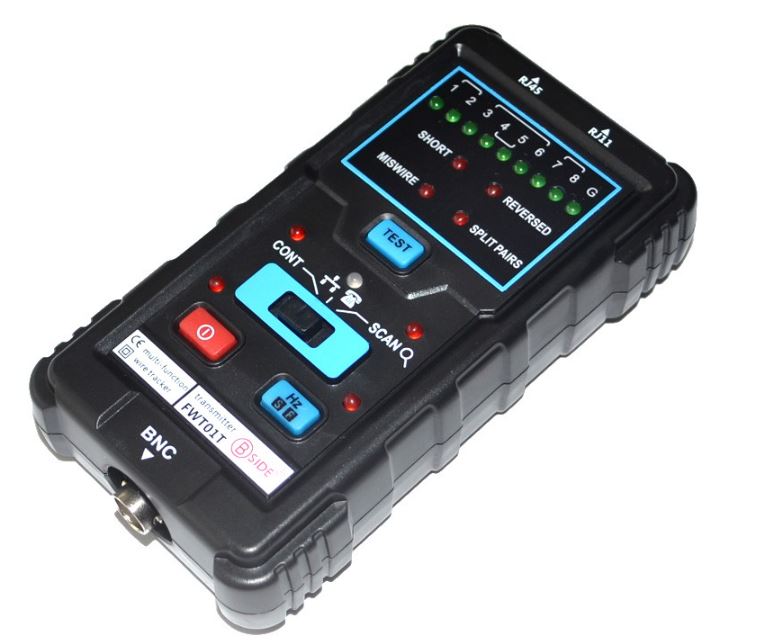

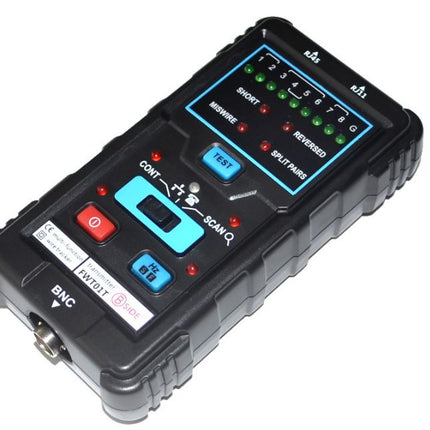

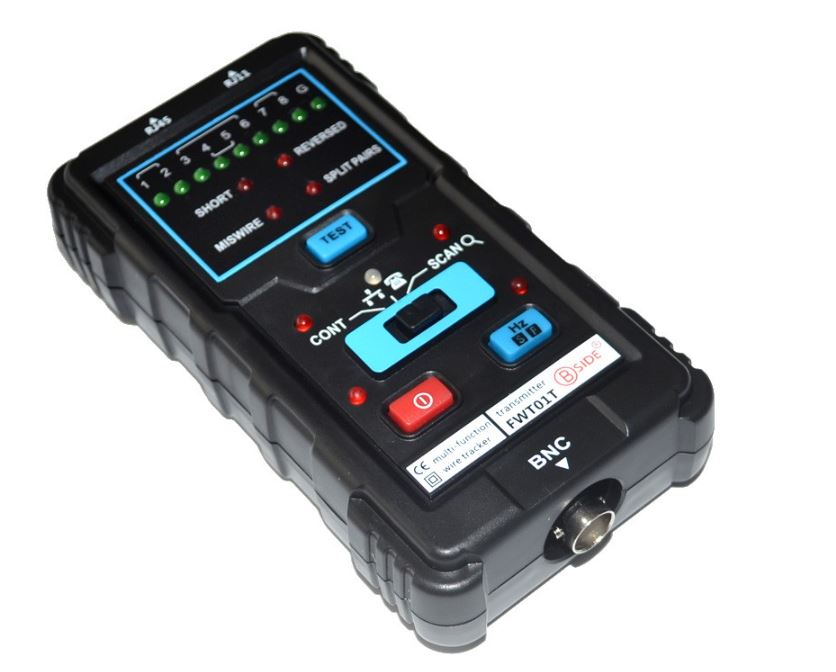

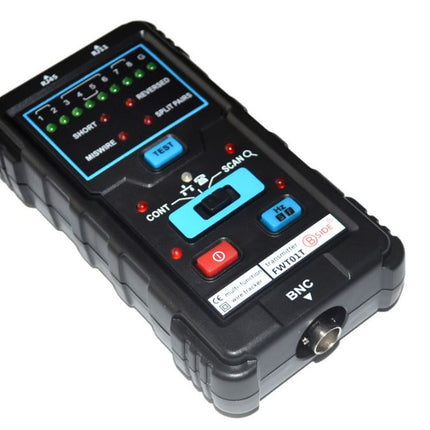

1. The transmitter pull button switch to the TONE position, TONE indicator lights.
2. The belt clip accessories inserted into the RJ11 socket of the transmitter, the red clip on the target cable; or the end of the RJ45 connector cable accessories is inserted into the transmitter RJ45 socket, the other end is inserted into a socket on the target.
3. Then with the receiving antenna receiver to close to the target cable, test button receiver receives the audio signal. At the same time can be adjusted by the volume knob toadjust the receiving volume size. So you can judge the trend of continuous and cable.

Telephone line state detection work:
Detection of the work in the various states of the telephone line, only need the transmitter can be detected. The operation method of determining TIP or RING line:
1. The transmitter pull button switch in the telephone line function position (middle position).
2. The RJ11 socket RJ11 attachment crystal head end is inserted into the transmitter, the clip to a telephone line to be measured.
3. If the telephone line status indicator light (in the middle position of the pull button switch) bright red, red clip end is a TIP line, the black clip end for RING line; if the bright green, red clip end as RING line, TIP line for black clip end.

Determination of telephone lines in the work, ring and off hook state idle:
1. The transmitter pull button switch in the telephone line function position (middle position)
2. The RJ11 socket attachment RJ11 crystal head end is inserted into the transmitter, the red clip to the RING line, the black clip to TIP line.
3. If the telephone line status indicator light (in the middle position of the pull button switch) bright green, said telephone line is idle; if not bright said telephone line is off hook state; if the bright green or red at the same time a regular flash said telephone lines in ringing state.

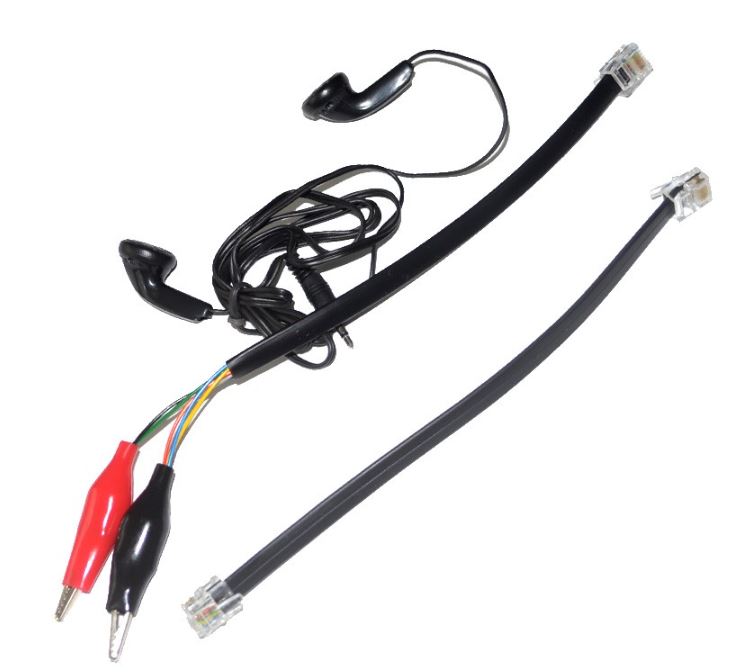

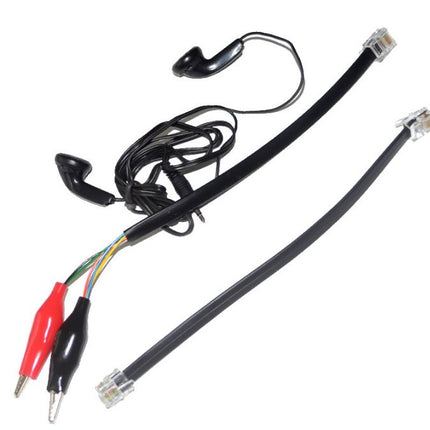

Package Include

1 x FWT01 Network Cable Detector
1 x Anti-mildew bag
1 x Earphone
1 x RG23 Cable
1 x Retail Box
1 x English User Manual

Product form

This product is a multi-functional handheld cable line finder & testing tool. It has wide application with reinforced cable types... Read more

1 in stock

Dhs. 149.00 Incl. VAT
